Microps C

Coin classification and sorting

Summary

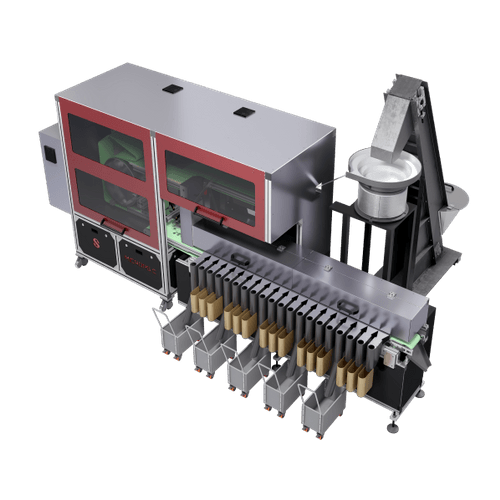

An automated, stand-alone and lightweight visual inspection machine for both classification and sorting of minted coins including circulation and commemorative coins, as well as medals.

A number of deep learning and enhanced pattern matching techniques are used to classify the coins, including but not limited to alloy, currency, denomination and feature.

While employing precision technology and highly autonomous operation, Microps C remains both minimalistic and cost-effective.

Microps C, the next generation of coin classification and sorting.

Clients

Some of our recent clients:
No items found.

Defects

Accurate detection and Rejection of the following defects:
Alloy
Currency
Denomination
Feature e.g. design
Pattern
Denomination
Currency
Alloy
Alloy
Currency
Denomination
Feature e.g. design

SORTING

Accurate CLASSIFICATION and SORTING of the following CATEGORiES:
Alloy
Currency
Denomination
Feature e.g. design
Pattern
Denomination
Currency
Alloy
Alloy
Currency
Denomination
Feature e.g. design

specifications

features

High speed and high accuracy

Dual-sided classification of each coin using machine learning technology

Automated system calibration (60 seconds)

Flexible and remote operation

Pneumatic rejection system

Self cleaning cameras

Real-time/Archived statistics and analysis

Technical specs

Fully configurable sorting based on alloy, currency, denomination or feature e.g. year, mint mark or design

Up to 300 coins per minute (standard configuration)

Up to 20 sorting stations (standard configuration)

Diameter: 12mm - 39mm

Thickness: 1mm - 3.2mm

Compatible with all metals (steel, nickel, copper, bimetallic, silver, aluminium, etc.)

Compatible with all types (circular, ring, bimetallic, scalloped, etc.)

Supports >100 litre coin loads

Intuitive Touchscreen HMI display
